| Display |
10.1” TFT, 1024×600 resolution, 350 cd/m² brightness, 500:1 contrast, 16.7M colors, LED backlight >50,000 hrs, viewing angle 70/70/80/80 |
| Touch Panel |
4-wire resistive type, accuracy Active Area Length(X) ±2%, Width(Y) ±2% |
| Memory & Processor |
Flash 4 GB, RAM 1 GB, Quad-core RISC CPU |
| I/O Ports |
USB Host 2.0 x1, LAN1: 10/100/1000 Base-T x1, LAN2: 10/100 Base-T x1, WiFi M02 expansion module (optional) |
| COM Ports |
Con.A: COM2 RS-485 2W/4W, COM3 RS-485 2W
Con.B: COM1 RS-232 4W, COM3 RS-232 2W |
| Power |
24±20% VDC input, 1A@24VDC consumption, built-in isolation, 500VAC resistance, insulation >50MΩ at 500VDC |
| Enclosure & Mounting |

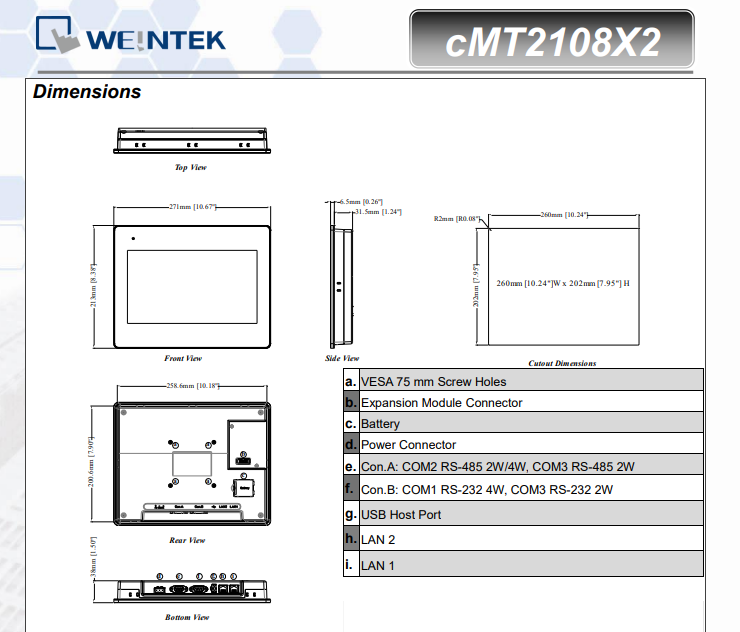

Plastic, panel mount, VESA mount 75×75 mm, 271 x 213 x 38 mm, cutout 260 x 202 mm, approx. 1.2 kg |
| Environment |
IP66 / NEMA4 / UL Type 4X (indoor use), operating temp 0~50°C, storage -20~60°C, humidity 10–90% non-condensing, vibration endurance 2G |
| Certificates |
CE, UL, cULus |
| Software |
EasyBuilder Pro V6.06.02 or later, Weincloud EasyAccess 2.0 (optional), Dashboard (optional), CODESYS® (optional) |
