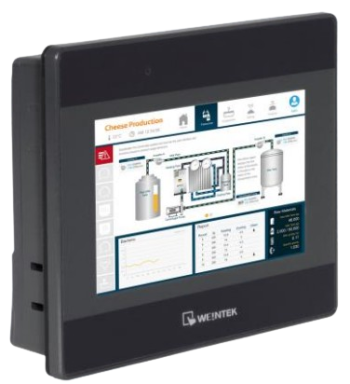

Weintek MT8052iP Series – HMI 7” TFT Industrial Panel

MT-8052iP

Weintek MT8052iP adalah HMI 7” TFT dengan resolusi 800×480, LED backlight 450 cd/m², dual-core RISC processor, dan memori 256MB Flash + 256MB RAM. Dilengkapi COM port RS-232/RS-485, Ethernet 10/100 Base-T, serta USB Host untuk konektivitas fleksibel. Panel depan berstandar NEMA4/IP65, mendukung EasyBuilder Pro & EasyAccess 2.0, cocok untuk kebutuhan otomasi industri.

Feature Highlights:

7” 800×480 TFT LCD, LED backlight
Dual-core RISC processor
256MB Flash, 256MB RAM
Ethernet 10/100 Base-T & USB Host
COM1 RS-232, COM2 RS-485 2W/4W
Built-in RTC & Power Isolator
Panel mount, IP65 Compliant Front Panel
Mendukung EasyBuilder Pro & EasyAccess 2.

Spesifikasi MT8052iPBacklight TypeLEDUSB HostUSB 2.0 x 1Ethernet10/100 Base-T x 1COM PortCOM1: RS-232/RS-485 2W/4W,COM3: RS-485 2WPower IsolationBuilt-inVoltage Resistance500VAC (1 min.)Isolation ResistanceExceed 50MΩ at 500VDCSpecificationPCB CoatingN/ADimension WxHxD128 x 102 x 32 mmWeightApprox. 0.25 kgOperating Temperature0° ~ 55°C (32° ~ 131°F)Relative Humidity10% ~ 90% (non-condensing)Vibration Endurance10 to 25Hz (X, Y, Z direction 2G 30 minutes)CertificateCECE Marked

Display	Display	4.3” TFT
	Resolution	480 x 272
	Brightness (cd/m2)	400
	Contrast Ratio	500:1
	Backlight Life Time	>30,000 hrs
	Colors	16.7M
	LCD Viewing Angle (T/B/L/R)	50/70/70/70
	Pixel Pitch (mm)	0.198(H)x0.198(V)
	Touch Panel	Type	4-wire Resistive Type
Accuracy	Touch Panel	Active Area Length(X)±2%, Width(Y)±2%
Memory	FLash	256MB
Memory	RAM	128 MB
Processor		Dual-core RISC
I/O Port	SD Card Slot	N/A
	USB Client	N/A
	RTC		Built-in
	Power	Input Power	24±20% VDC
		Power Consumption	350mA@24VDC
Enclosure		Plastic
Panel Cutout		119 x 93 mm
Mount		Panel mount
Environment	Protection Structure	NEMA4 / IP65 Compliant Front Panel
	Storage Temperature	-20°~60°C (-4° ~ 140°F)
	Software	EasyBuilder Pro	V6.08.01 or later versions
	Software	Weincloud	EasyAccess 2.0 (Optional)
