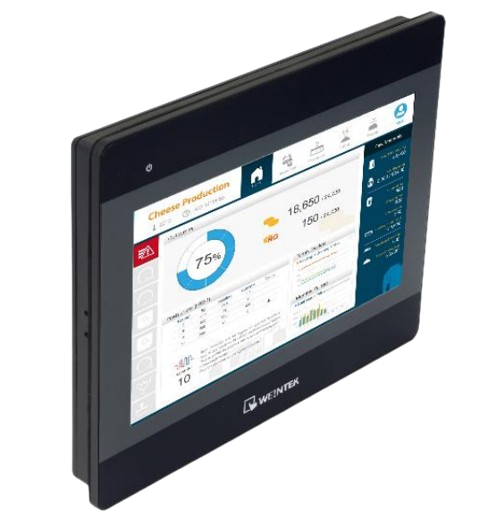

Weintek MT8106iP Series – HMI 10.1” WVA Industrial Panel

MT-8106iP Series

Weintek MT8106iP adalah HMI 10.1” Wide Viewing Angle (WVA) dengan resolusi 1024×600, kontras tinggi 1000:1, dan backlight berumur panjang hingga 50.000 jam. Menggunakan dual-core RISC processor dengan 256MB Flash dan 128MB RAM, dilengkapi Ethernet, USB Host, serta port komunikasi RS-232 & RS-485 untuk fleksibilitas integrasi. Panel depan berstandar NEMA4/IP65, mendukung EasyBuilder Pro dan EasyAccess 2.0, ideal untuk aplikasi otomasi industri berskala besar.

Feature Highlights:

10.1” WVA LCD 1024×600, LED Backlight
Brightness 350 cd/m², Contrast 1000:1
Dual-core RISC processor
256MB Flash & 128MB RAM
COM Port: RS-232 & RS-485 (multi-port)
Ethernet 10/100 Base-T & USB Host
Built-in RTC & Power Isolator
Panel mount, IP65 Compliant Front Panel
Mendukung EasyBuilder Pro & EasyAccess 2.0

Spesifikasi MT8106iPBacklight TypeLEDUSB HostUSB 2.0 x 1Ethernet10/100 Base-T x 1COM PortCon.A: COM2 RS-485 2W/4W, COM3 RS-485 2W

Con.B: COM1 RS-232 4W, COM3 RS-232 2W*Power IsolationBuilt-inVoltage Resistance500VAC (1 min.)Isolation ResistanceExceed 50MΩ at 500VDCSpecificationPCB CoatingN/ADimension WxHxD271 x 213 x 36.4 mmWeightApprox. 1 kgOperating Temperature0° ~ 55°C (32° ~ 131°F)Relative Humidity10% ~ 90% (non-condensing)Vibration Endurance10 to 25Hz (X, Y, Z direction 2G 30 minutes)CertificateCECE Marked

Display	Display	10.1” Wide Viewing Angle (WVA)
	Resolution	1024 x 600
	Brightness (cd/m2)	350
	Contrast Ratio	1000:1
	Backlight Life Time	50,000 hrs
	Colors	16.7M
	LCD Viewing Angle (T/B/L/R)	89/89/89/89
	Pixel Pitch (mm)	0.2175 (H) x 0.2088 (V)
	Touch Panel	Type	4-wire Resistive Type
Accuracy	Touch Panel	Active Area Length(X)±2%, Width(Y)±2%
Memory	FLash	256MB
Memory	RAM	128 MB
Processor		Dual-core RISC
I/O Port	SD Card Slot	N/A
	USB Client	N/A
	RTC		Built-in
	Power	Input Power	24±20% VDC
		Power Consumption	510mA@24VDC
Enclosure		Plastic

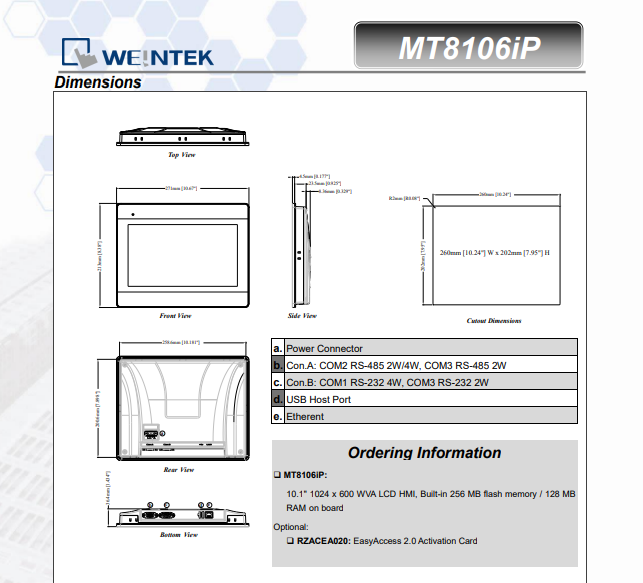

Panel Cutout		260 x 202 mm
Mount		Panel mount
Environment	Protection Structure	NEMA4 / IP65 Compliant Front Panel
	Storage Temperature	-20°~60°C (-4° ~ 140°F)
	Software	EasyBuilder Pro	V6.08.01 or later versions
	Software	Weincloud	EasyAccess 2.0 (Optional)
